Ultrasonic Bubble Sensors
Latest in ultrasonic sensing technology
Highly reliable bubble sensors and air in line detectors designed for plastic tubing sizes from 1/16" to 1/2" OD
Advanced Ultrasonic Detection Technology
Our highly reliable bubble sensors and air in line detectors include the latest in ultrasonic sensing technology. Designed for plastic tubing sizes from 1/16" (1.6mm) OD to 1/2" (12.7mm) OD, these non-invasive sensors can detect liquid-in-air lines, or bubbles-in-liquid lines.
With response times of 50 microseconds, our sensors detect even fast-moving bubbles. They also work with both clear and opaque tubing (ink jet printers).
Custom Engineered to Fit Your Application:
- All standard bubble sensors sense bubbles sizes equal to or greater than the ID of the tubing.
- SMD can custom calibrate our sensors to detect smaller bubbles, or to ignore "nuisance" bubble sizes that would otherwise interfere with the application's function.
- Custom housing designs are offered to OEM applications.
- Can be COMBINED with an Occlusion Sensor (to detect flow blockage) in one package.
- Custom integration to work with disposable cartridges for single-use applications.

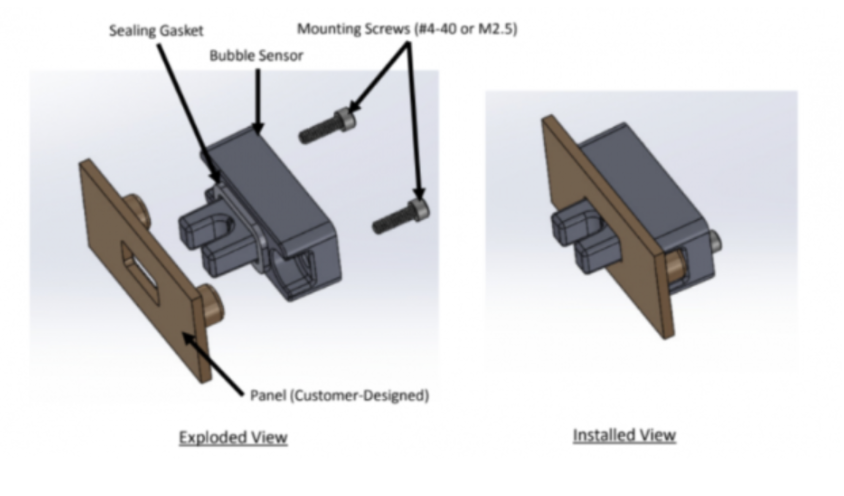

Panel-Mount Options
- Reduce "visible" footprint of sensor by installing from inside of medical device panel.
- This isolates the electronics and allows for safe liquid wash-down of sensor.
Groove Configurations

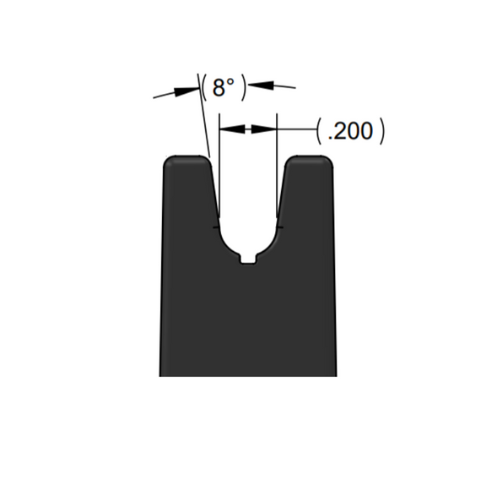

V-Shaped Groove
for Single-Use Disposable Cartridges
8° angle, 0.200" spacing

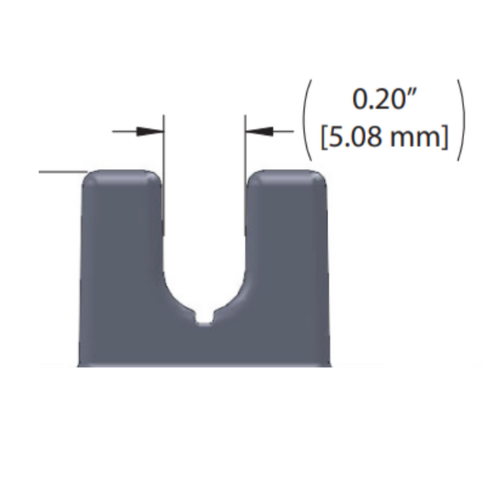

U-Shaped Groove
for Standard Tubing
0.20" (5.08 mm) width
Our Capabilities
| Technology | Feature | Benefit |
|---|---|---|
Ultrasonic Sensing |
|
|
Custom Calibration |
|
|
Housing Customization |
|
|
Panel Mount Option |
|
|
Logic Gate Bubble Detection |
|
|

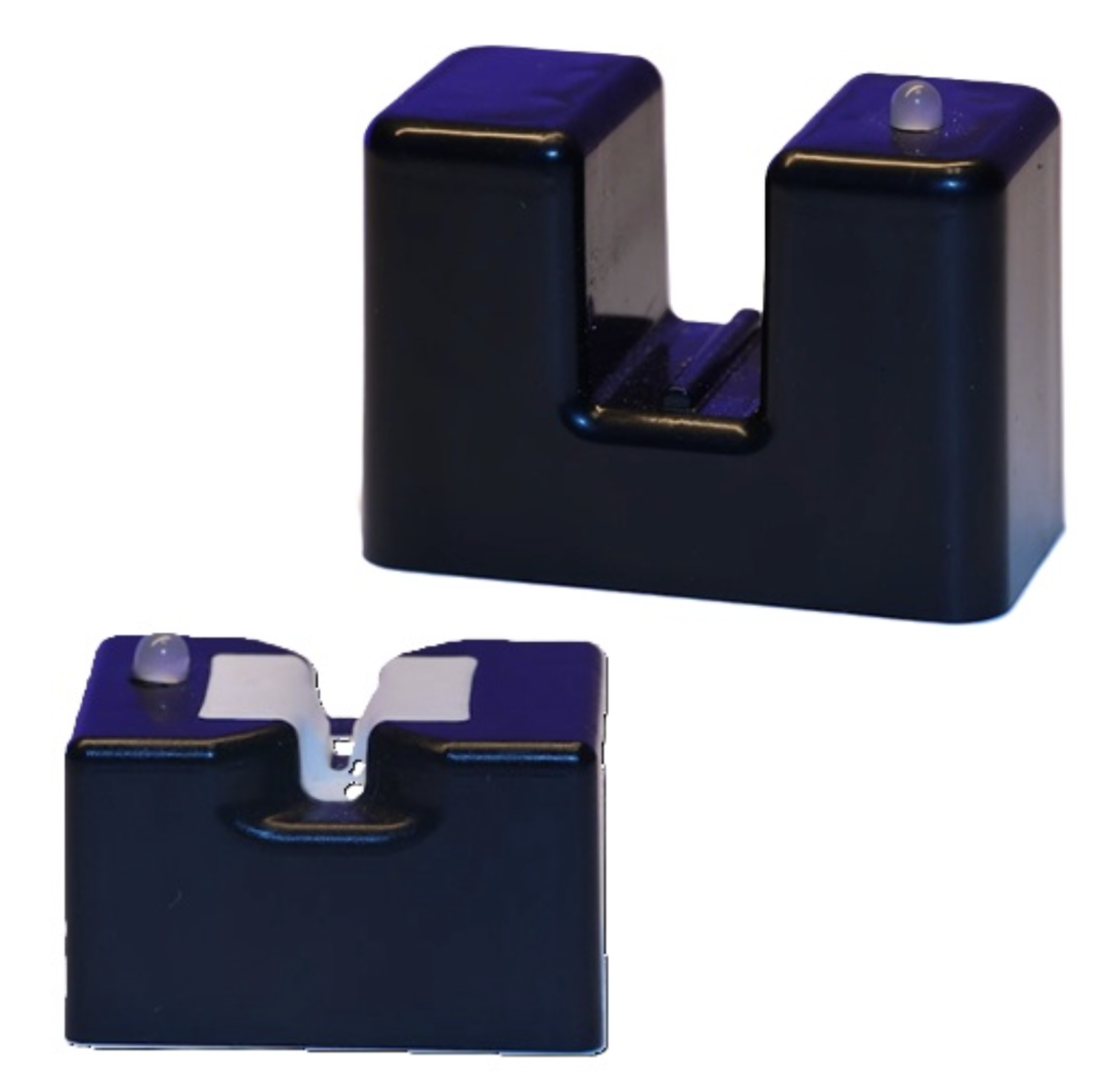

Standard Bubble Sensor Designs
- Complete range of ultrasonic bubble sensors for various tubing sizes and applications.
- Both V-shaped and U-shaped groove configurations available for different use cases.
- Technical support offered to select the best sensor configuration for your application.
Bubble Sensor Applications / Markets
Markets:
- Medical Devices (ISO 13485 Certified, ISO 9001 Certified)
- Automation Fluid Delivery
- Industrial (Pump Cavitation Detection)
- Microfluidics
- R&D, Labs, Universities
Bubble Sensor Applications
SMD Sensors specializes in advanced ultrasonic bubble detection solutions that deliver reliable, accurate and fast bubble detection across medical, industrial, and laboratory applications.
Applications
Dialysis Machines
Reliable bubble detection for critical dialysis applications ensuring patient safety.
Liquid Dosing
Precise bubble detection for accurate liquid dosing in medical and industrial applications.
Microfluidics
Ultra-sensitive bubble detection for microfluidic systems and lab-on-a-chip devices.
Contact Us
Our team of experts is ready to help you find the perfect sensor solution for your application.
